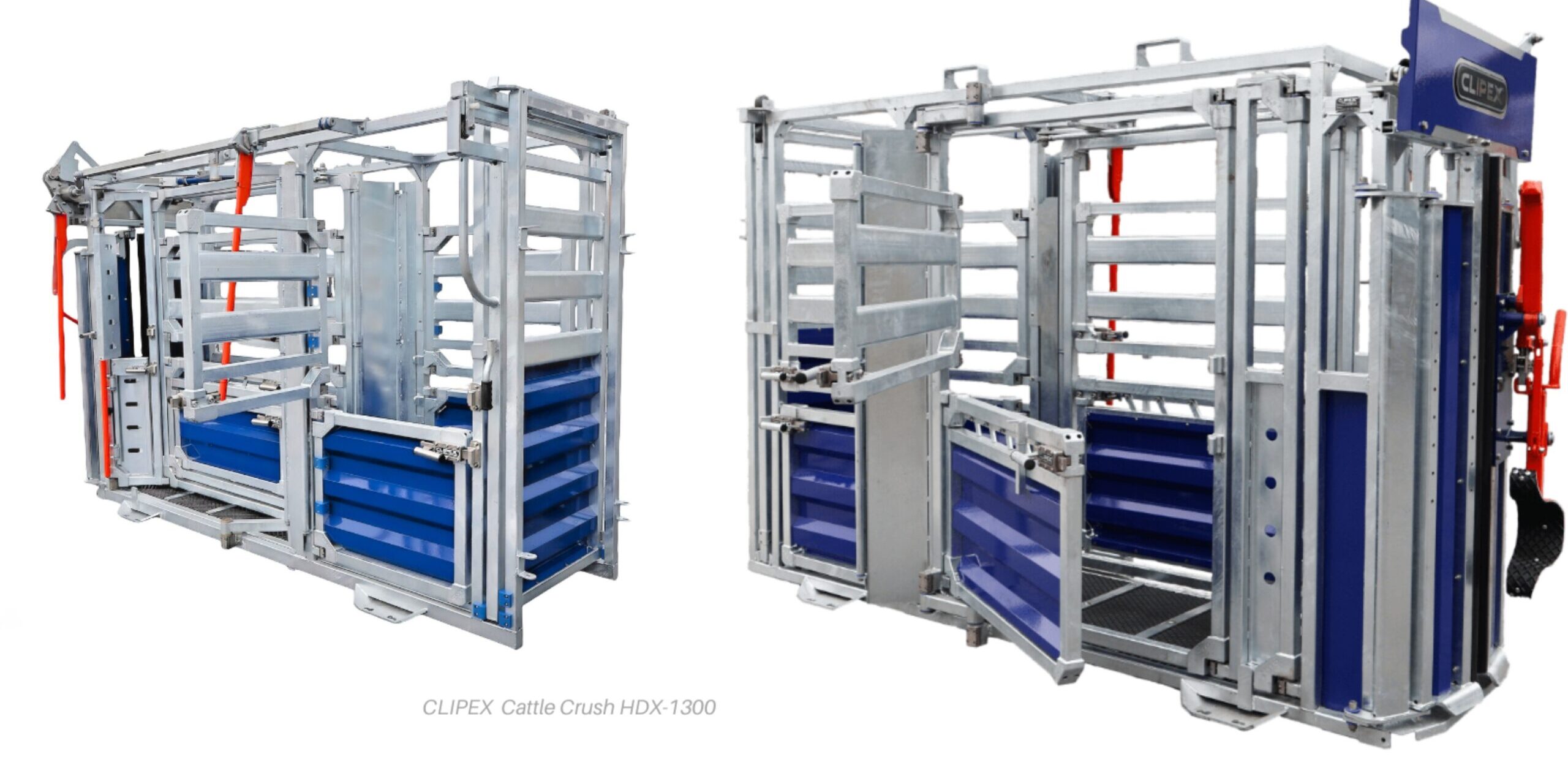

Clipex HDX1300 vs HDX1100
A practical comparison for UK cattle farmers
Both the HDX1100 and HDX1300 are heavy-duty manual cattle crushes from Clipex, designed for safe, efficient handling. They share many core features — double parallel squeeze, silent locking, full vet section, anti‑bruise rails, split gates, sheeted bottom doors, and hot‑dip galvanised construction.
But they are not the same crush. The HDX1300 is a larger, upgraded, extra-wide model with additional access and handling features.
Here’s a clear breakdown.
1. Internal Width & Animal Capacity
HDX1300 — Extra‑Wide Crush
- Maximum internal width: 820 mm
- Narrows to 290 mm for secure control
- Designed for bigger, broader cattle and improved comfort
HDX1100 — Standard HDX Width
- Standard HDX width (not extra‑wide)
- Suitable for most beef and dairy breeds, but not as spacious as the 1300
Summary: The HDX1300 is physically larger and better suited to larger continental cattle or farms needing more space.
2. Head Bail & Squeeze System
Both models include:
- Double parallel squeeze
- Infinite silent locking on head bail & squeeze
- Heavy‑duty head bail design (100x series on HDX1100)
HDX1300 advantage:
- Hydraulic ultra‑locking system on head bail & squeeze (manual operation but upgraded mechanism)
Summary: Both are strong, but the HDX1300 has a more advanced locking system.
3. Vet Access & Handling Features
HDX1300
- Full vet section
- TB testing doors for extra neck access
- Split gates on both sides
- Heavy‑duty head scoop included
HDX1100
- Full vet section
- Split gates on both sides
- Head scoop included
Key difference: Only the HDX1300 includes TB testing doors and extra neck access, making it better for vet work and TB testing.
4. Noise & Stress Reduction
HDX1300
- Noise‑dampening technology built in
- Rubber‑over‑metal flooring for quieter operation
HDX1100
- Silent operation via nylon bushes
- Rubber flooring included
Summary: Both are quiet, but the HDX1300 has additional noise-dampening features.
5. Construction & Durability
Both models include:
- Hot‑dip galvanised steel construction
- 120 mm anti‑bruise rails
- Sheeted bottom doors
- Load bar mounts on feet
- In‑built floor section
Summary: Both are extremely durable, but the HDX1300 is built heavier overall.
6. Best Use Case
Choose the HDX1300 if:
- You handle large or strong cattle
- You want extra width and more space
- You need TB testing doors and better vet access
- You want the most advanced manual HDX crush
Choose the HDX1100 if:
- You want a high‑quality, heavy‑duty crush at a lower price
- You don’t need the extra width
- You want a reliable, quiet, durable crush for routine work
- You want a model covered under the FETF Grant

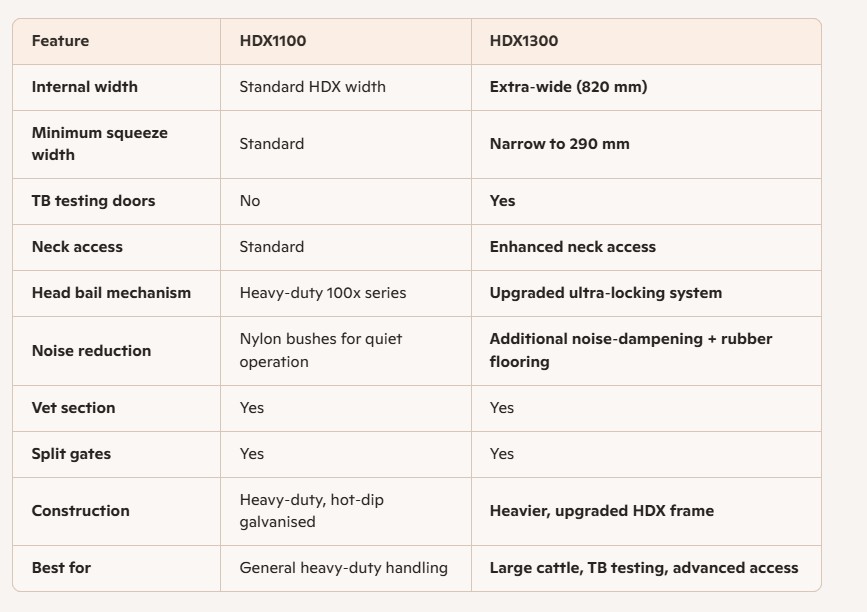

HDX1100 vs HDX1300 Comparison Table

Final Summary
The HDX1100 is a strong, reliable, heavy‑duty cattle crush ideal for most farms.
The HDX1300 is the premium, extra-wide, vet-friendly upgrade with better access, more space, and enhanced handling features.
