Investing in cattle handling infrastructure is a long-term capital decision that directly impacts farm safety, stock throughput, labour requirements, and animal welfare. While a high-specification cattle crush handles restraint, yard design and race flow dictate how efficiently cattle reach that crush.
This Cattle Handling Systems & Yard Design guide covers full yard infrastructure, from ground preparation and semi-permanent structural design to behavioural cattle flow, forcing tub selection, and seamless EID/weighing integration.
Selecting between a semi-permanent modular yard and a fully fixed structural steel system depends on farm tenancy, ground conditions, future expansion plans, and capital flexibility.
Installed Cattle Handling System in Hampshire
Installed System Performance

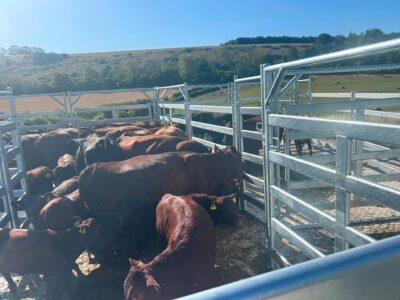

This layout in action at Ed Mitchell’s farm in Hampshire.
A full batch of 34 cows and 24 calves (58 total) was moved through the collection pen, sweep tub, curved race, and crush in just 1.5 hours during their initial run.
Key Result: Zero balking at the curved entry race and rapid batch weighing for cows and calves.

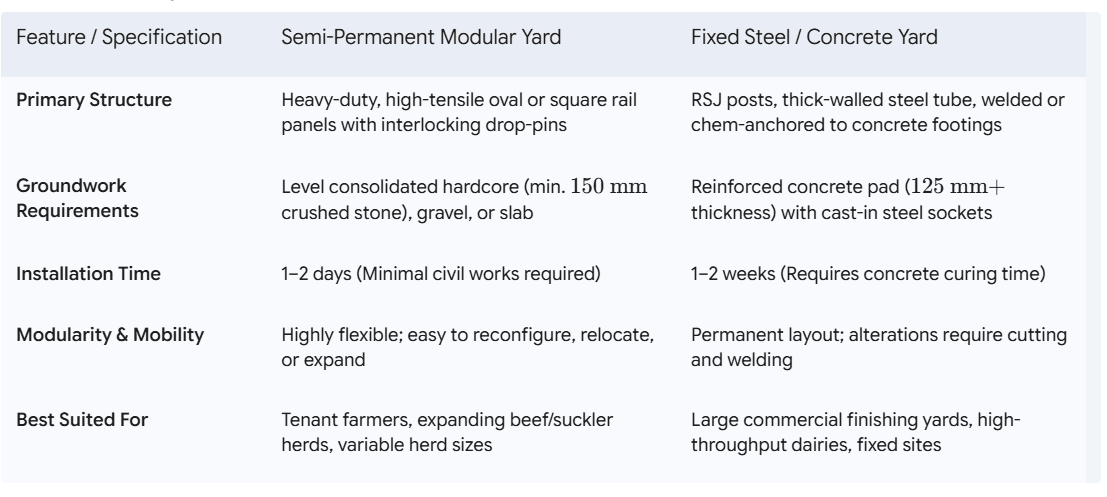

Structural Comparison Matrix
Groundwork & Footing Recommendations
Semi-Permanent Systems: Require a compacted, free-draining hardcore base (minimum 150 mm crushed stone). In high-impact bottleneck areas (such as forcing tub entries or crush inputs), securing frame posts into recessed concrete sleeves provides maximum rigidity while preserving long-term yard portability.
Fixed Concrete Foundations: Permanent slabs should measure a minimum of 125 mm thick, using 25–30 MPa reinforced concrete. Grade slabs at a 1:60 slope toward perimeter drainage to clear effluent rapidly, ensuring non-slip footing under heavy stock pressure.

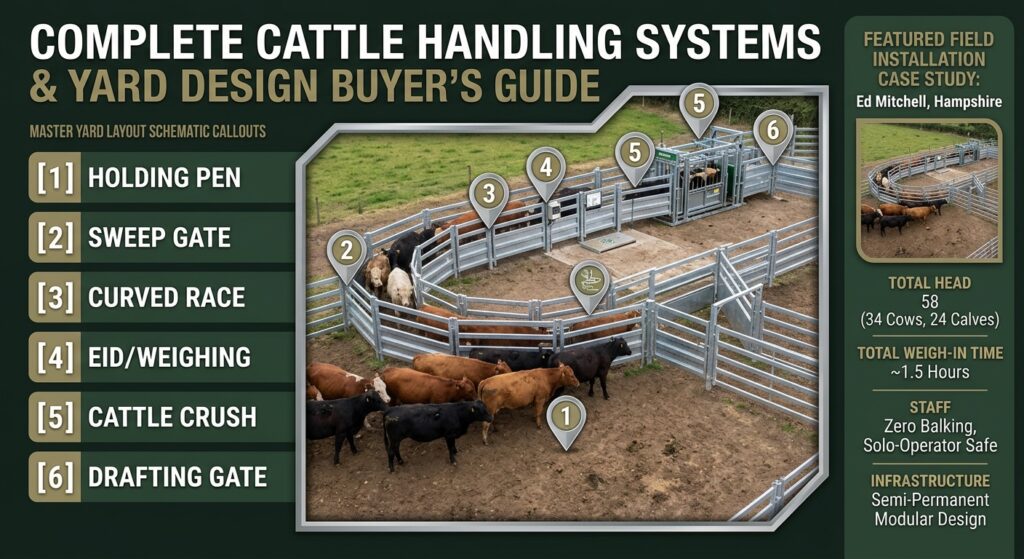

2. Behavioral Transit Sequences & Layout Dynamics
Efficient cattle yards exploit natural bovine behavioural traits: cattle move naturally toward light, prefer to circle back toward where they entered, and keep visual contact with the herd while avoiding apparent dead ends.
Step 1
Holding Pen / Collection Yard
Wide entry gates on consolidated ground for stress-free batch loading without crowding bottlenecks.
1
Stage 1 Callout
Batch Collection Pen
↓
Step 2
180° Forcing Tub (PG or HD Series)
Sweep gate funnels stock smoothly into single file. Auto-locking ratchet latch prevents back-pushing.
2
Stage 2 Callout
Sweep Gate & Force Tub
↓
Step 3
Curved Sheeted Raceway
Blind sightlines exploit natural bovine circling instincts and eliminate visual side distractions.
3
Stage 3 Callout
Curved Race Section
↓
Step 4
EID Reader & Weigh Station
In-line panel antenna and heavy-duty weigh platform capture tag data and weight before restraint.
4
Stage 4 Callout
EID / Weigh Platform
↓
Step 5
Treatment Cattle Crush
Secure head bailing, squeeze sides, and full vet safety access for TB testing or treatments.
5
Stage 5 Callout
Restraint Crush
↓
Step 6
2-Way / 3-Way Drafting Gate
Post-crush exit gate sorts cattle directly into separate holding pens or back to pasture.
6
Stage 6 Callout
Post-Crush Sorting
Forcing Tub Comparison: PG vs. HD Models
A forcing tub funnels cattle safely from wide pens into a single-file race without requiring handlers to stand inside the pen behind excited animals.
PG (Standard Duty) Forcing Tub:
Build: 180 radius sweep tub engineered from high-tensile galvanized tubular steel.
Efficient Cattle Handling for Smaller Herds. The PG Forcing Tub is a compact, high‑quality cattle handling solution.
HD (Heavy-Duty) Forcing Tub:
Build: Fully sheeted, high-impact steel frame with heavy top bracing and reinforced pivot posts.
Safety Latch: Multi-point, positive auto-lock latch with rubber dampeners to minimize metallic rattle.
Recommended Herd Size: Engineered for high-throughput commercial units, dairy operations, or flighty bull herds where maximum structural impact resistance is essential.
HD Forcing Tub – Advanced Cattle Handling for High-Throughput Operations
Engineered for speed, safety, and automation, the HD Forcing Tub is the most efficient cattle crowding system in its class.
Curved vs. Straight Race Layouts
Curved Races: Prevent stock from seeing the crush or operator ahead, drawing cattle forward as they instinctively follow the inner curve.
Visual Blind Barriers (Sheeted Panels): Solid sheeted lower and upper panels shield cattle from external distractions (dogs, farm machinery, bystanders), keeping their focus directly on the open space ahead.
Race Width & Tapering: An internal width of 700 mm – 750 mm accommodates standard commercial stock. Tapered race sides prevent younger stock or calves from turning around while easily taking large finishing bulls.
Modern livestock yards integrate electronic identification, weigh scales, and drafting gates into a single continuous sequence before cattle reach or exit the main crush.
Component 1
EID Panel Antenna
Mounted using non-metallic HDPE spacers to prevent galvanized frame interference, achieving 100% read rates.
Component 2
Integrated Weigh Platform
Heavy-duty 2,000–3,000kg load bars installed flat under a non-slip aluminum floor plate.
Component 3
Cattle Crush
Manual or pneumatic head bails and squeeze sides ensure calm, static holding for treatments.
Component 4
Post-Crush Sorting Gate
2-Way or 3-Way exit gates sort cattle instantly by live weight, group, or treatment status.

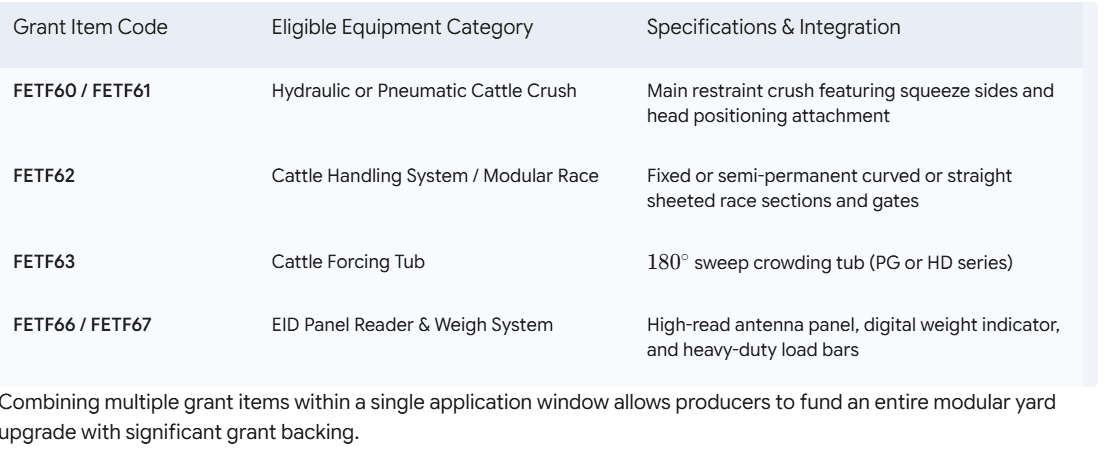

Upgrading handling yards, race sections, forcing tubs, and weigh equipment is eligible for grant funding under the UK Farming Equipment and Technology Fund (FETF).
Combining multiple grant items within a single application window allows producers to fund an entire modular yard upgrade with significant grant backing.
